How to Install PDLC Smart Film – UAE Guide

Introduction to PDLC Smart Film Installation

PDLC (Polymer Dispersed Liquid Crystal) smart film is widely used in the UAE for privacy, UV control, and energy efficiency. Installation varies slightly depending on whether the film is self-adhesive or requires adhesive spray. This guide covers both methods.

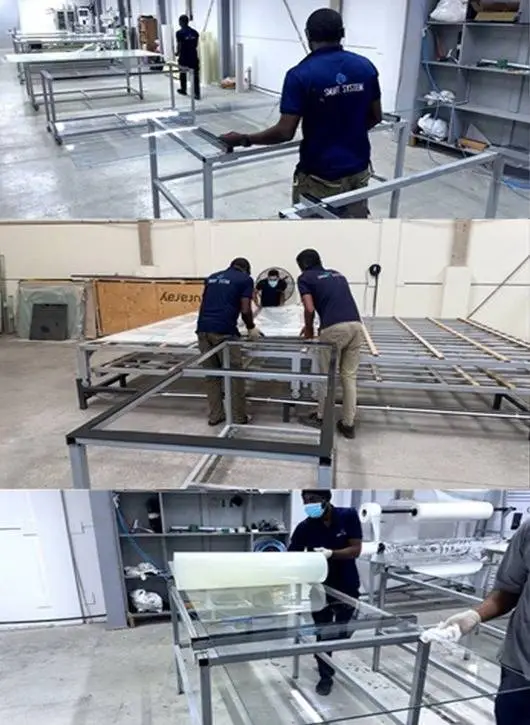

Technicians preparing PDLC smart film in our Dubai workshop

Recommended Workshop Conditions

✔ Low dust environment (critical for bubble-free application) ✔ Temperature: 15°C – 30°C (UAE heat can affect adhesion) ✔ Humidity below 70% (high humidity weakens bonding) ✔ Clean, flat workspace (prevents misalignment)

Step-by-Step Installation Guide

1. Prepare the Busbars & Wires (Key Step!)

Locate the conductive busbars (usually copper strips at the top & bottom edges).
Peel back 3-5mm of the protective layer to expose the busbar.
Apply conductive silver paste (ensures strong electrical contact).
Pre-attach short wires (strip 5mm, solder or use crimp connectors).
Secure with Kapton tape (heat-resistant insulation).

⚠ Note:

Self-adhesive films often come with pre-attached busbars.
Non-adhesive films require manual busbar prep before mounting.

2. Measure & Cut the Film

Unroll the film on a clean, flat surface.
Measure glass dimensions +2-3cm extra for adjustments.
Cut using a sharp blade & straight edge.

3. Prepare the Glass Surface

Clean with isopropyl alcohol (70%+) and a lint-free cloth.
Ensure zero dust, grease, or residues (critical for adhesion).

4. Apply the PDLC Film

A) Self-Adhesive Film Method

Slowly peel the backing layer.
Align perfectly before sticking (use a squeegee to remove bubbles).
Apply firm, even pressure (center → edges).

B) Non-Adhesive Film Method

Spray adhesive solution evenly on the glass.
Carefully lay the film, avoiding wrinkles.
Use a soft roller to ensure full adhesion.

5. Electrical Connections & Testing

Connect wires to the power supply (usually 48V-110V AC).
Max terminal distance: 3-4 meters (longer = voltage drop).
Test for even dimming/brightening.
Use a heat gun (low setting) to fix minor wrinkles if needed.

Key Differences: Self-Adhesive vs. Non-Adhesive Film

Factor	Self-Adhesive Film	Non-Adhesive Film
Adhesion Method	Pre-applied adhesive layer	Requires spray adhesive
Busbar Prep	Often pre-attached	Manual prep required
Installation Speed	Faster	Slower (drying time)
Ease for Beginners	Easier	More technical

Common Mistakes to Avoid

❌ Skipping busbar prep → Poor electrical contact. ❌ Dirty glass surface → Bubbles & peeling. ❌ Stretching the film → Damages conductive layers. ❌ Exceeding 5m wire distance → Weak performance.
